Connections - Electric UI

Indicate availability of viable connections, along with a hint-refresh button and disconnection controls.

Screenshot of component Connections basic

Usage

<Connections
  preConnect={deviceID => navigate(`/device_loading/${deviceID}`)}
  postHandshake={deviceID => navigate(`/devices/${deviceID}`)}
  onFailure={(deviceID, err) => {
      console.log('Connections component got error', err, deviceID)
      navigate(`/`)
  }}
/>

Customisation

No device text

When no viable connections are found, default text is displayed.

The default is "No devices found". Override the text by passing a string into noDevicesText.

Screenshot of component Connections no-device-default

Screenshot of component Connections no-device-override

<Connections
  noDevicesText="Can't find hardware... Check under the couch?"
/>

Layout information

Customise the contents and layout of the card with internalCardComponent.

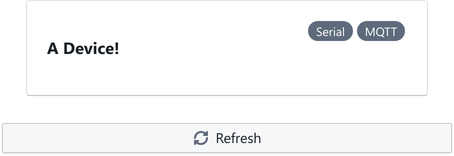

Screenshot of component Connections basic-h3

<Connections
  preConnect={deviceID => navigate(`/device_loading/${deviceID}`)}
  postHandshake={deviceID => navigate(`/devices/${deviceID}`)}
  onFailure={(deviceID, err) => {
      console.log('Connections component got error', err, deviceID)
      navigate(`/`)
  internalCardComponent={<h3>A Device!</h3>}
  }}
/>
