Environment

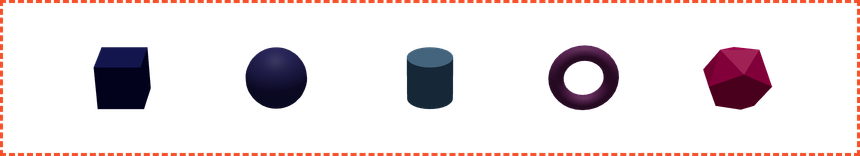

Environment is the foundational component responsible for bridging the pre-prepared threejs context and the Electric UI context.
![Screenshot of component Environment basic](/static/eff63b66ae7cf6f8cfcc234937aad51f/Environment-basic-desktop.png)
Environment
is the dashed outline, not the geometry inside it!
Usage
Like ChartContainer
acting as the parent for specific charting features, the Environment
component builds a react-three-fibre
scene with the necessary setup and tweaks for easier integration.
It defaults to rendering with a transparent background for easier integration with your front-end.
import { Environment } from '@electricui/components-desktop-three' <Environment > // Add geometry, lighting, and other scene components <mesh > <sphereBufferGeometry attach ="geometry" args ={[8, 16, 16]} /> <meshStandardMaterial attach ="material" color ="orange" roughness ={0.6} /> </mesh > <ambientLight intensity ={0.8} /> </Environment >
Environment
from@electricui/components-desktop-three
is required for use withControlledGroup
components. We handle suspense and context bridging to provide access to Electric UI state.

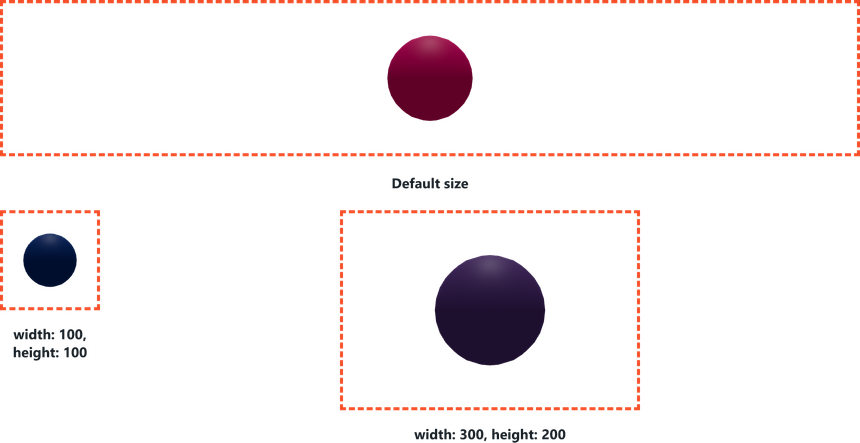

Size
Environment
default behaviour is to auto-fill it's parent.
We recommend controlling the size of the 3D canvas by setting width
and height
css properties on the parent (px
, %
, em
are all accepted as normal).
![Screenshot of component Environment size](/static/f21c581605c56fc11dbf9281e0184aa1/Environment-size-desktop.png)
<div style ={{width : "100px", height : "100px"}}> <Environment > // ... </Environment ></div >
Camera Control
Environment
accepts a camera
property, with the various settings defined as members of a Javascript Object.

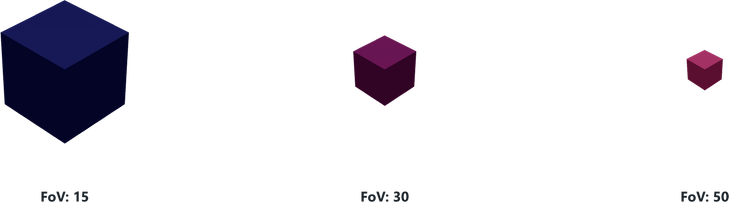

FoV
Modify the camera's field of view by providing a number
value for the fov
member.
![Screenshot of component Environment fov](/static/be4be3ad73113a1017403e32019b0302/Environment-fov-desktop.png)
<Environment camera ={{ fov : 30, }} > // ...</Environment >
Position
The position
property is specified as a Vector3
, controlling the camera's starting position. By default, the camera will look towards the world origin [0, 0, 0]
.
![Screenshot of component Environment position](/static/cd9b3514bae6c35f965aa109c371ccfe/Environment-position-desktop.png)
<Environment camera ={{ position : [15, 5, -15], }} > // ...</Environment >
Zoom
The zoom
property controls the zoom factor for the camera.
It accepts a single number. Default is 1
.
<Environment camera ={{ zoom : 50, }} > // ...</Environment >

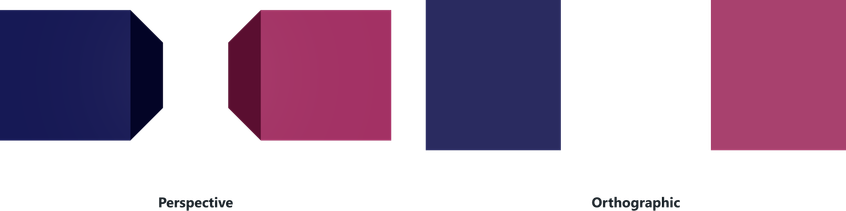

Orthographic Camera
Adding the orthographic
property to Environment
is useful when creating mock-2D visualisations, or scenes where camera controls are locked.
![Screenshot of component Environment orthographic](/static/1836ee63cea2860a1400231736d9752d/Environment-orthographic-desktop.png)
<Environment orthographic > // ...</Environment >
